Jovian Auroral Radio Source Occultation Modeling and Application to the JUICE Science Mission Planning. Supplementary Material: Galileo Flybys

Tuesday 4 February 2025, by Baptiste Cecconi, Corentin Louis

This collection contains figures and movies showing the ExPRES radio source occultations during the Galileo spacecraft Jovian icy moon flybys. This collection supplements: Cecconi et al. (2021) Jovian Auroral Radio Source Occultation Modeling and Application to the JUICE Science Mission Planning. Planet. Space Sci., 209, 105334.

Data products

Most of the targeted Galileo flybys of Io, Ganymede, Europa and Callisto have been processed. Two Europa flybys have been excluded: E15 (no spacecraft location data) and E18 (no Galileo PWS data). For each flyby, the ExPRES (Louis et al. 2019) code was used to model the occultation of the Jovian hectometric and decametric radio sources. The details of the study and the description of the processing pipeline, is described in Cecconi et al. (2021).

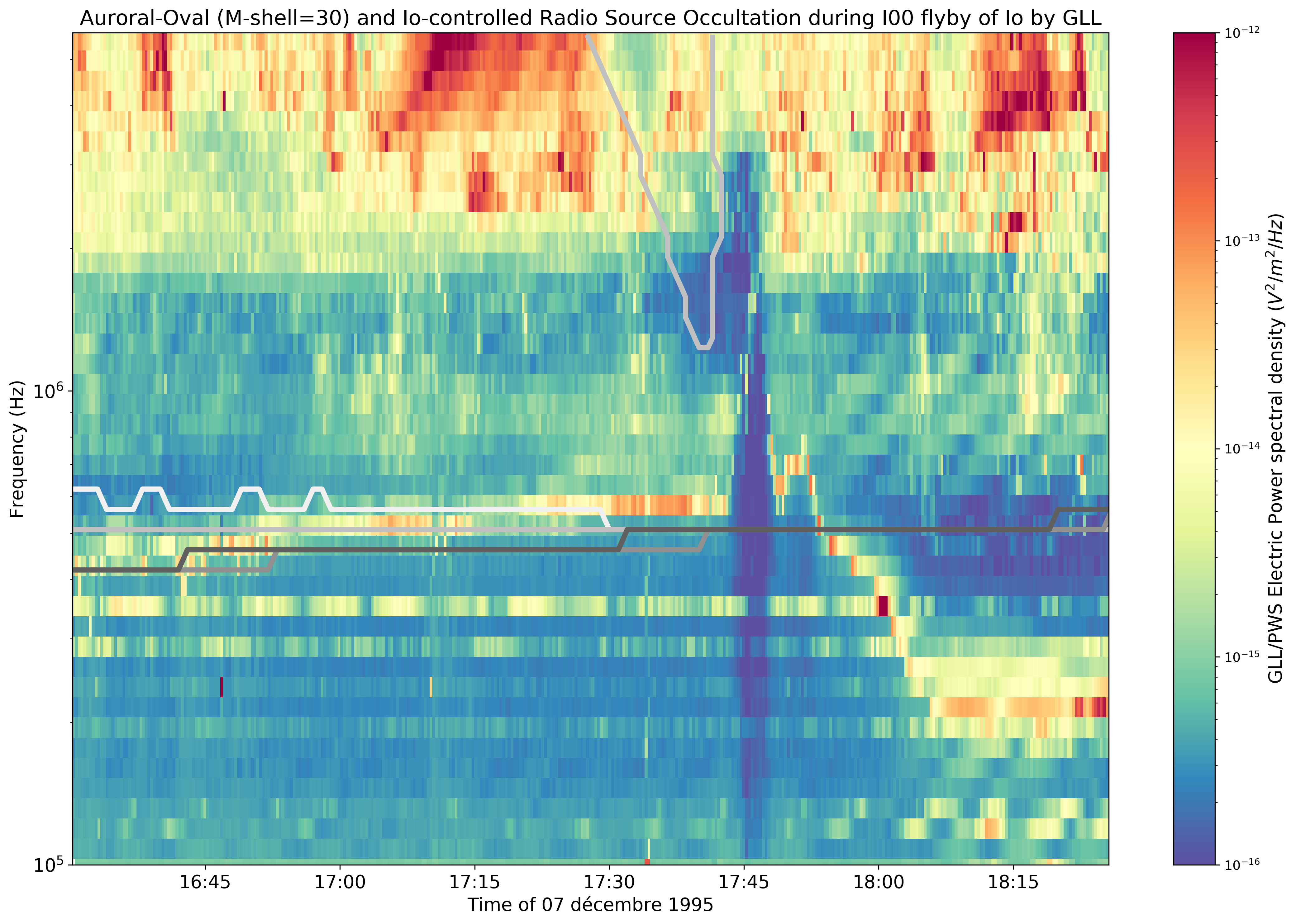

Galileo I00 Flyby

I00 ExPRES

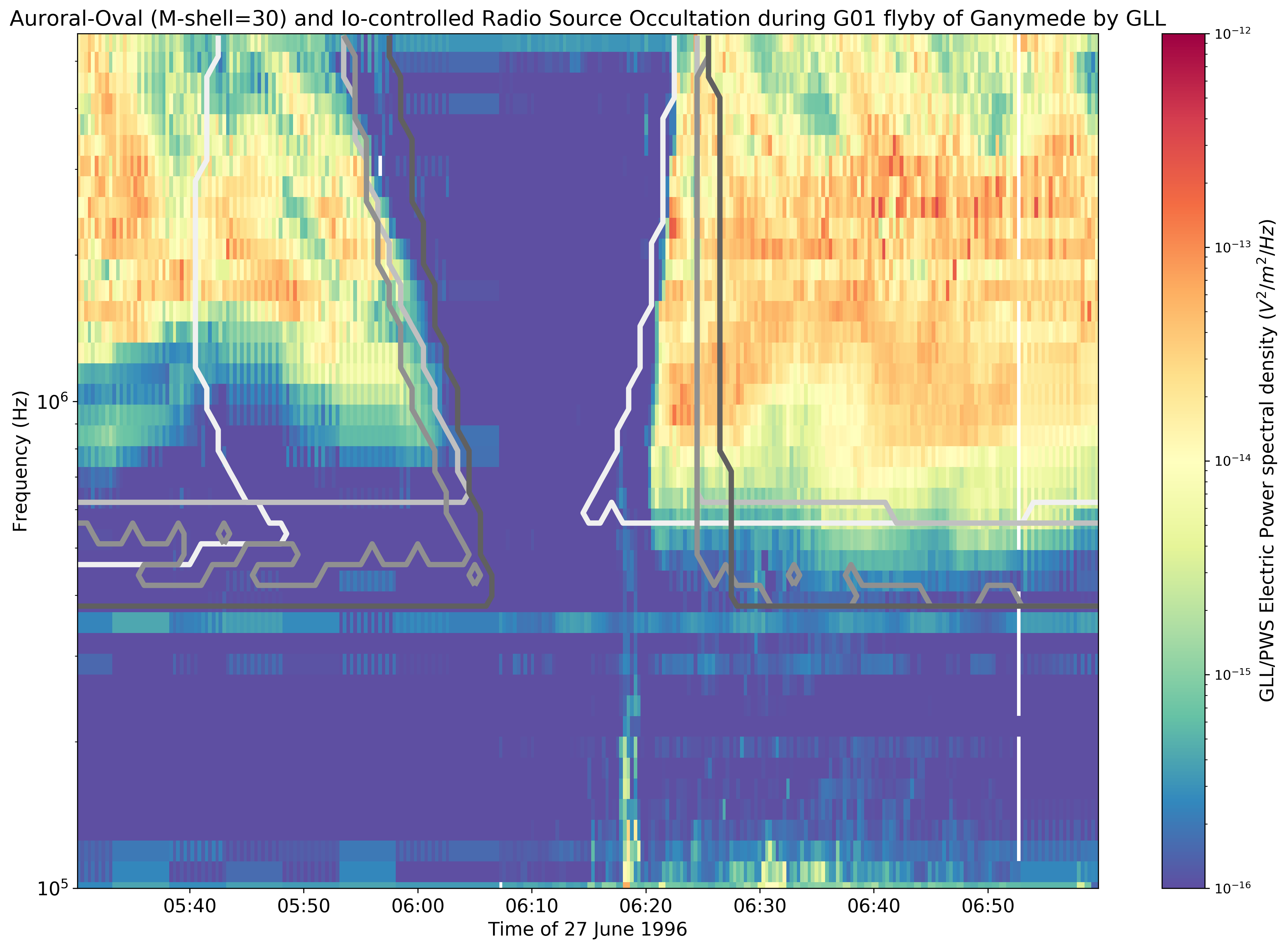

Galileo G01 Flyby

G01 ExPRES

Galileo G02 Flyby

G02 ExPRES

Galileo C03 Flyby

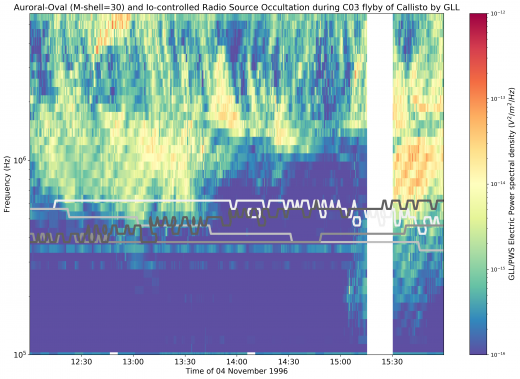

C03 ExPRES

Galileo E04 Flyby

E04 ExPRES

Galileo E06 Flyby

E06 ExPRES

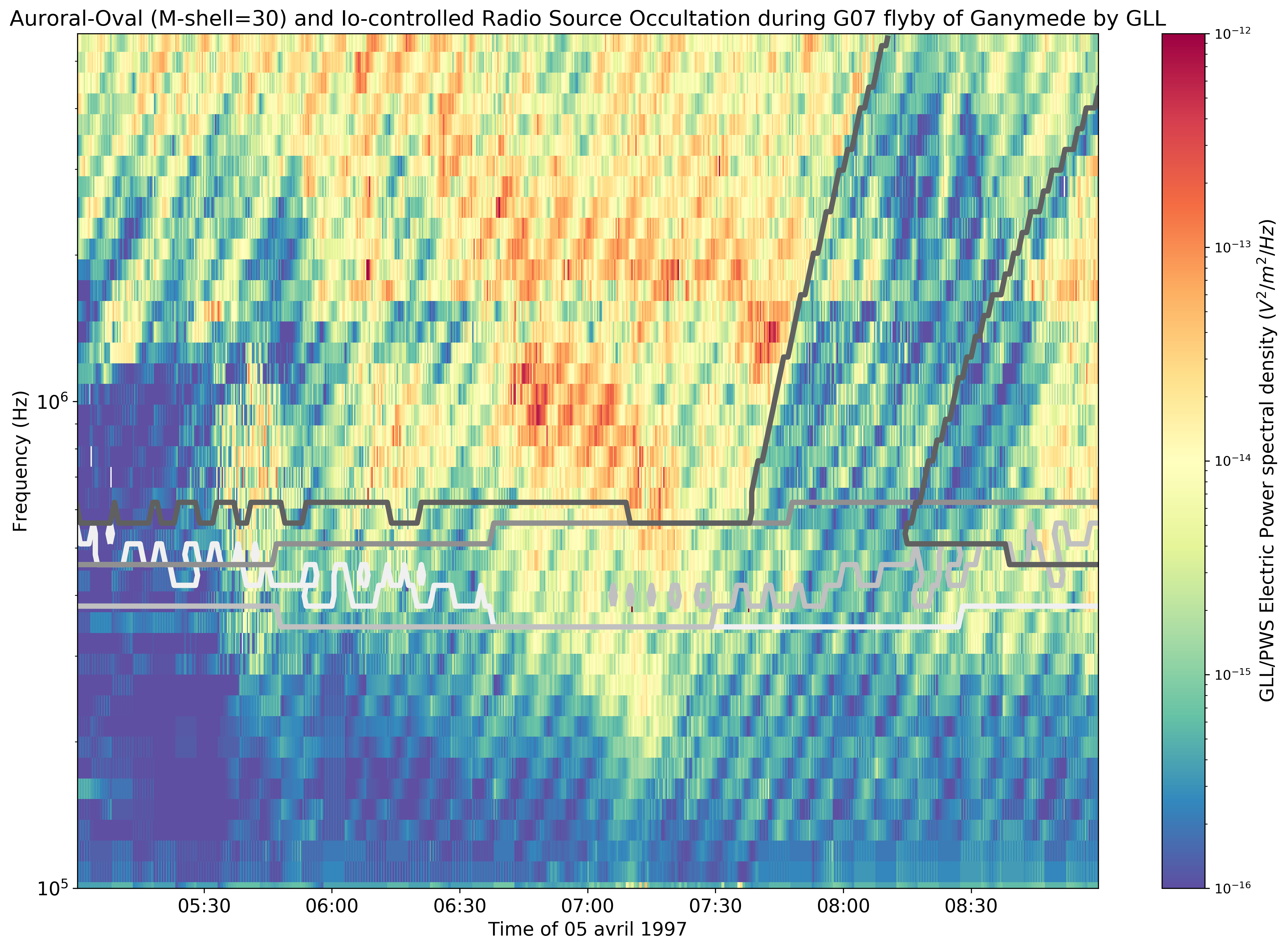

Galileo G07 Flyby

G07 ExPRES

Galileo G08 Flyby

G08 ExPRES

Galileo C09 Flyby

C09 ExPRES

Galileo C10 Flyby

C10 ExPRES

Galileo E11 Flyby

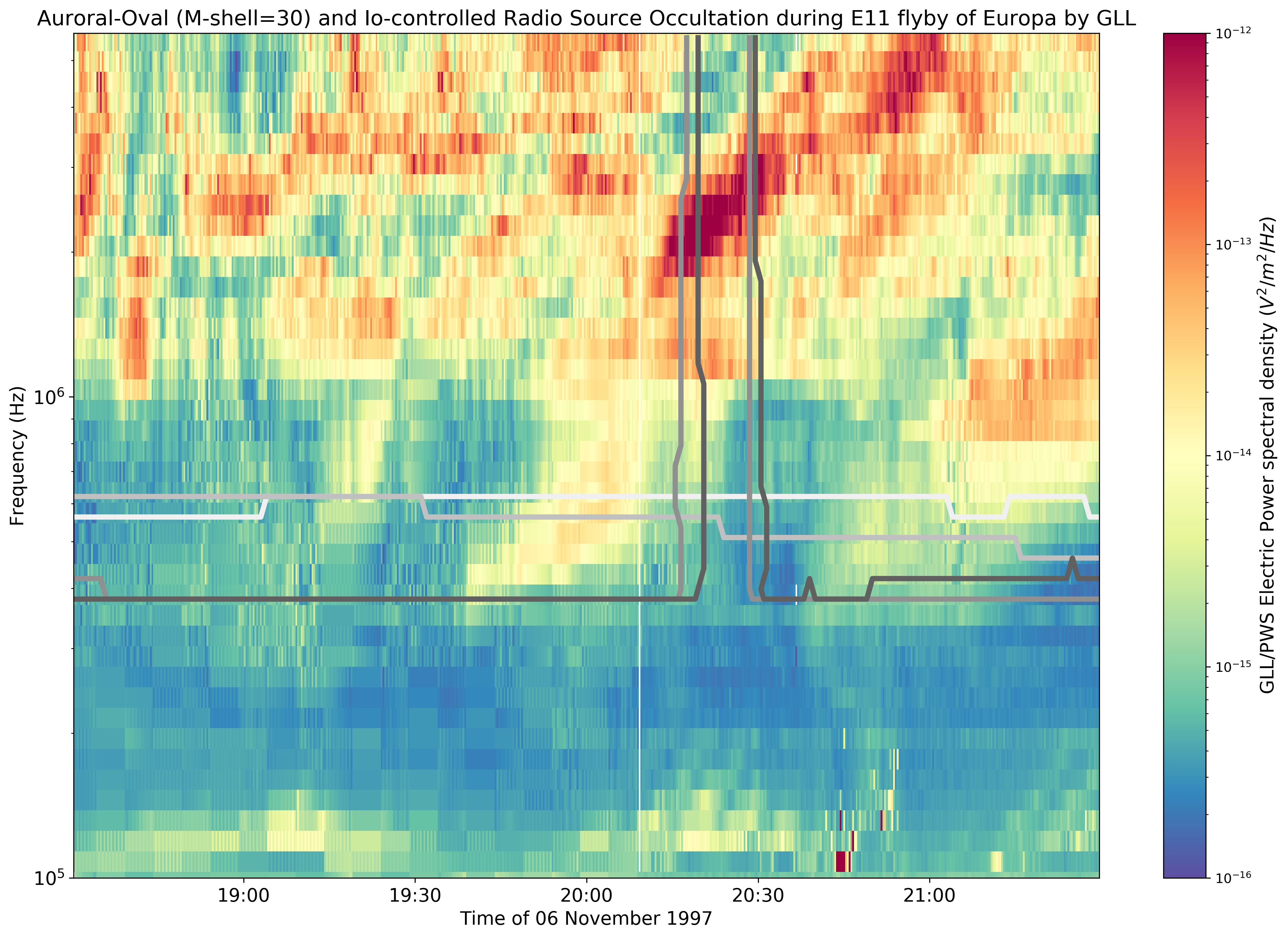

E11 ExPRES

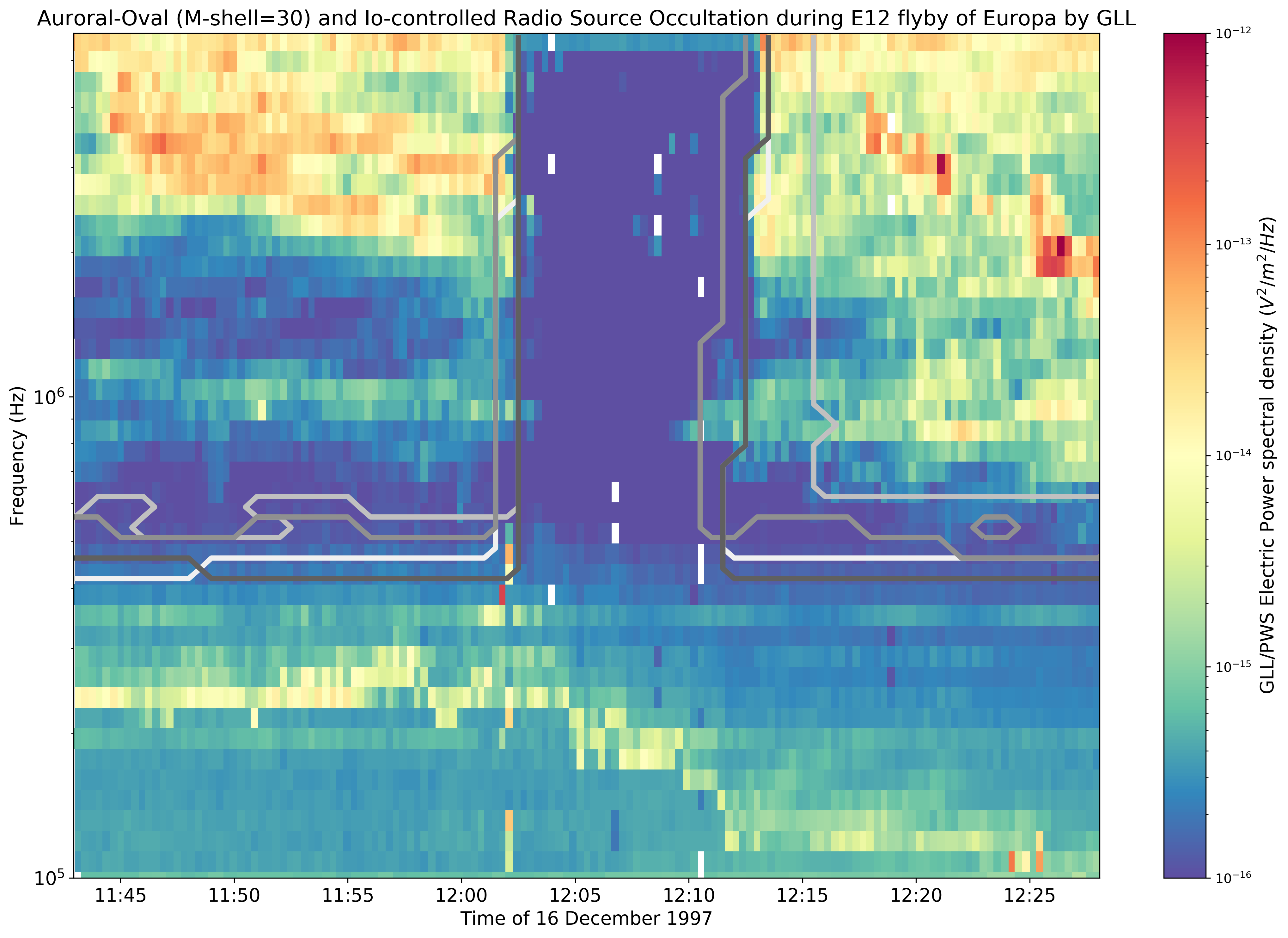

Galileo E12 Flyby

E12 ExPRES

Galileo E14 Flyby

E14 ExPRES

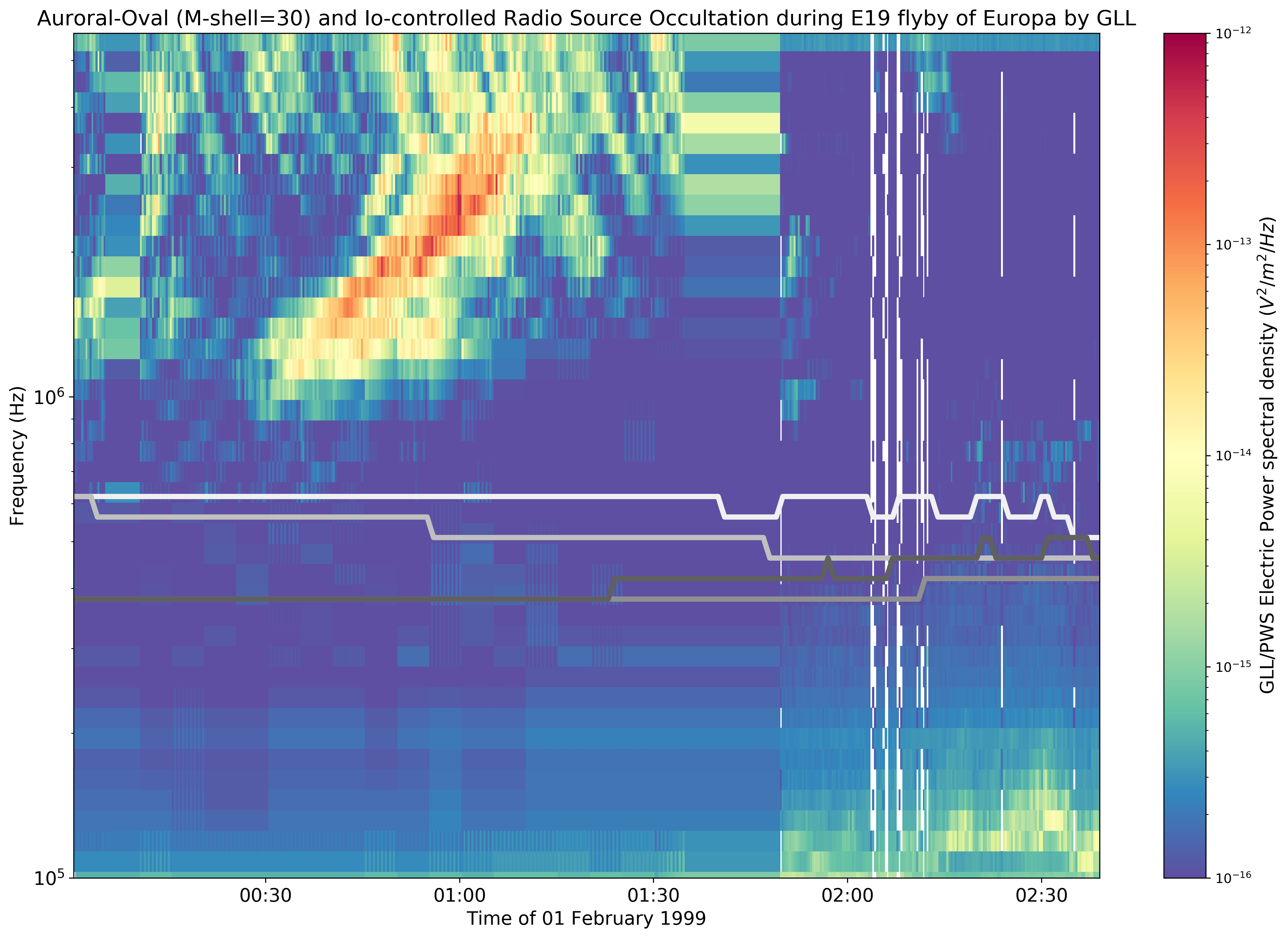

Galileo E19 Flyby

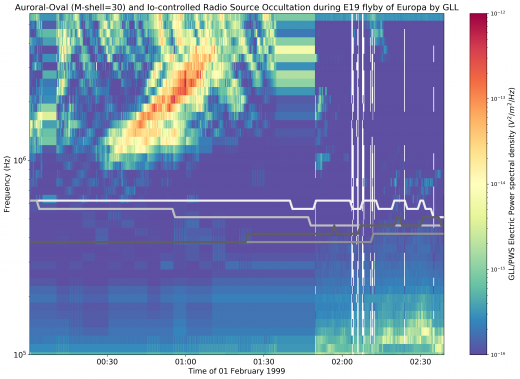

E19 ExPRES

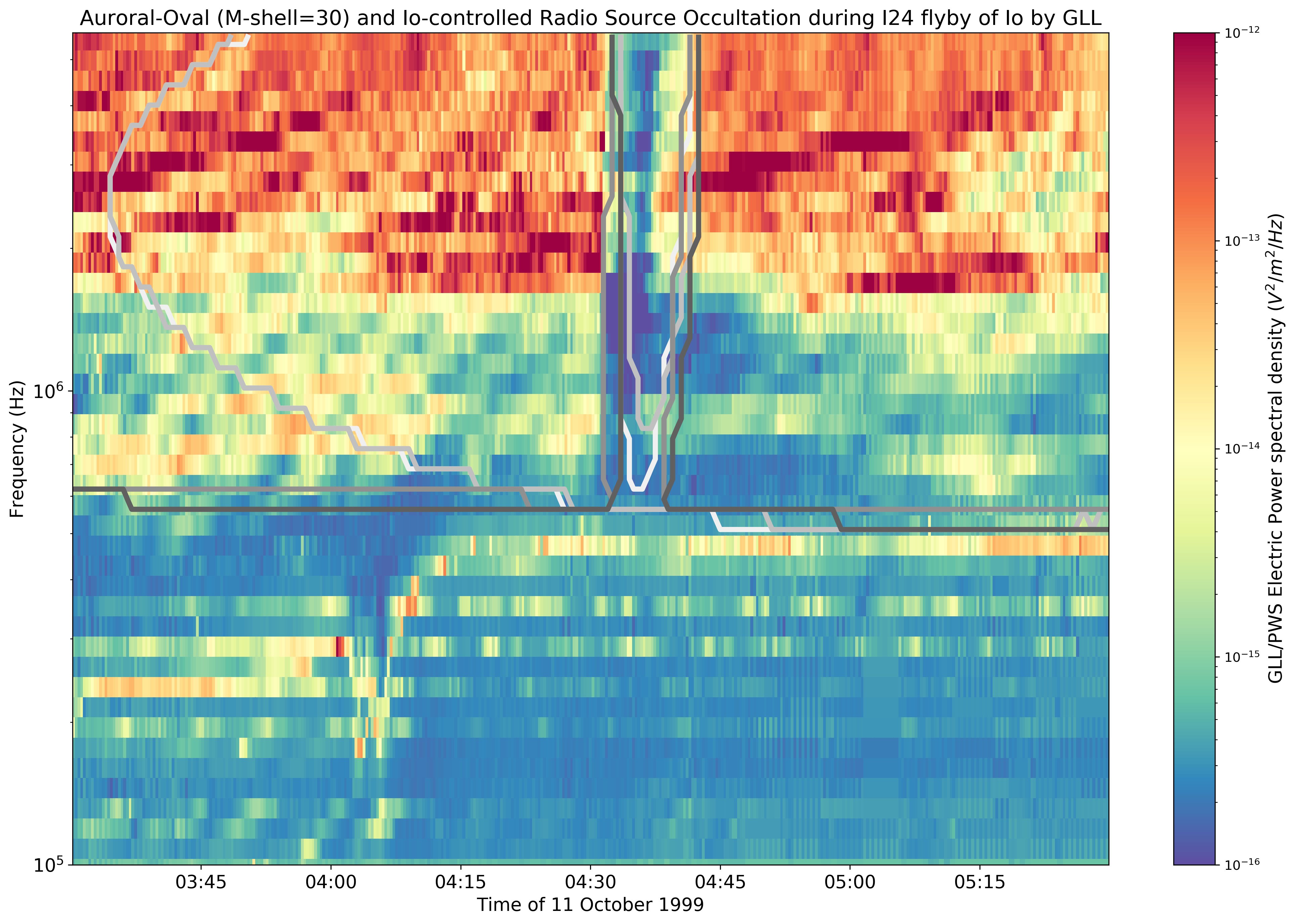

Galileo I24 Flyby

I24 ExPRES

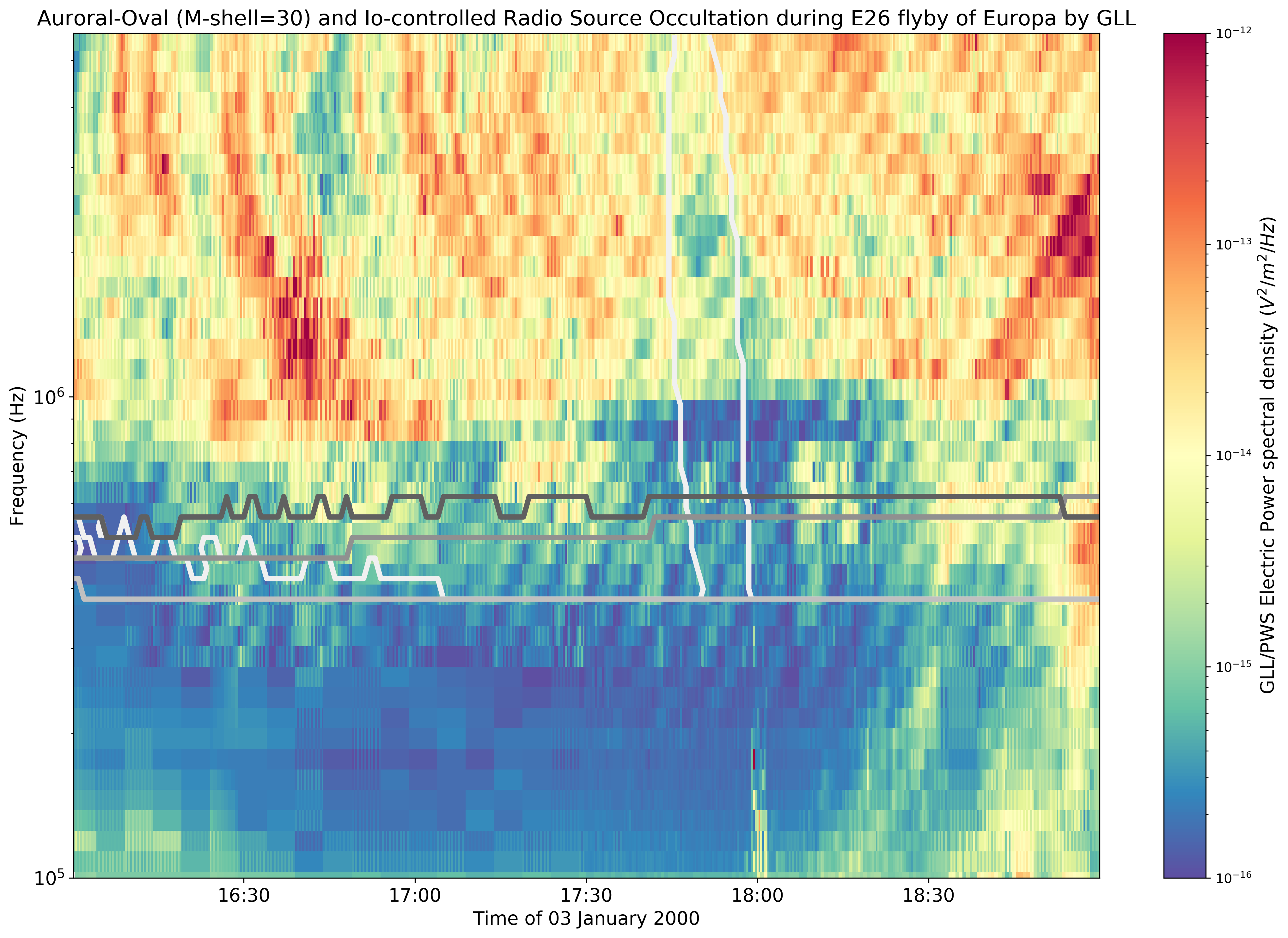

Galileo E26 Flyby

E26 ExPRES

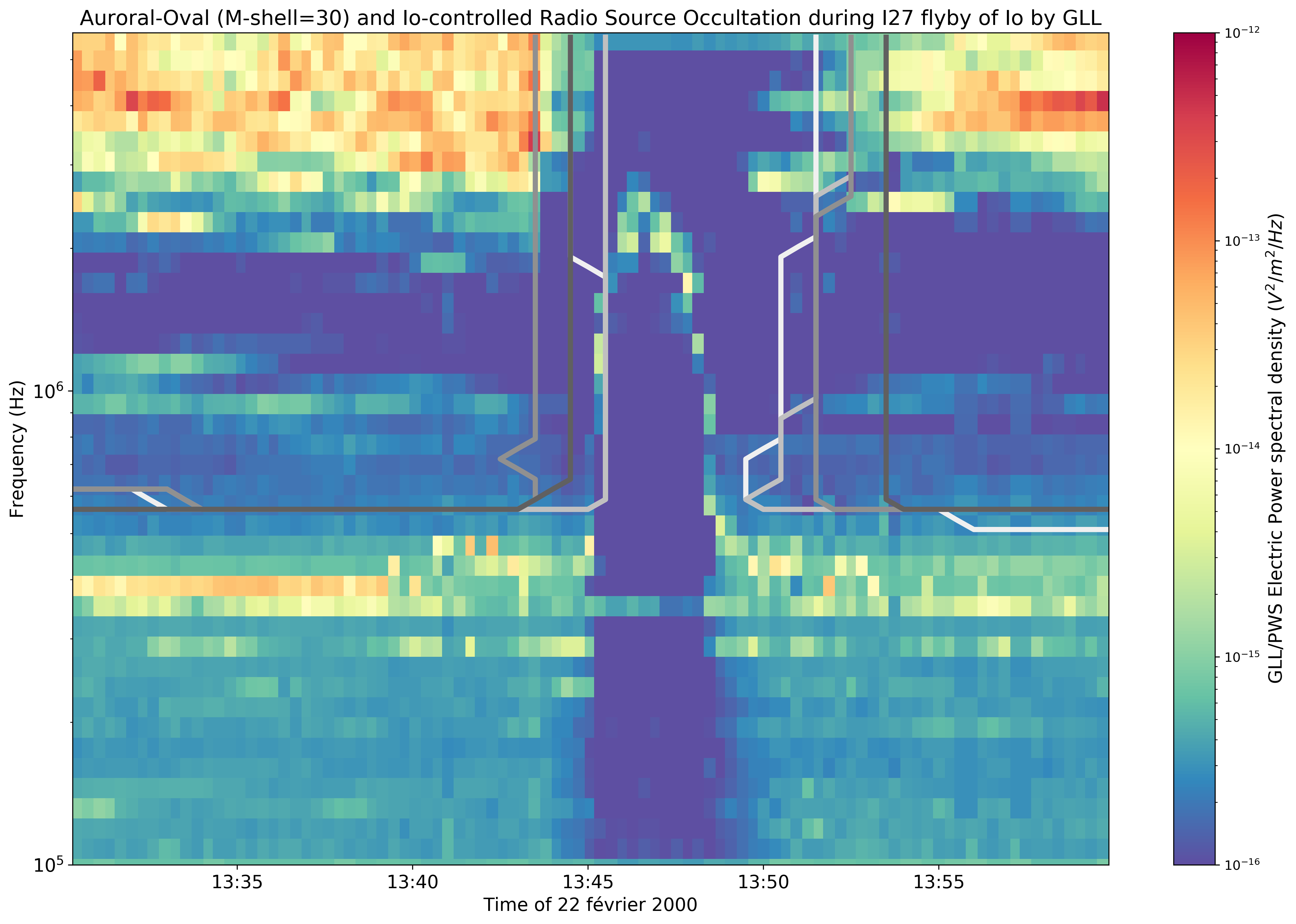

Galileo I27 Flyby

I27 ExPRES

Galileo G28 Flyby

G28 ExPRES

Galileo G29 Flyby

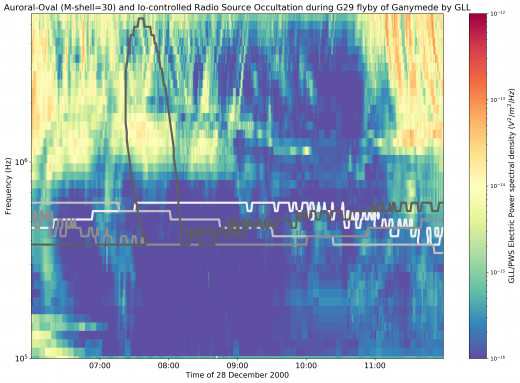

G29 ExPRES

Galileo C30 Flyby

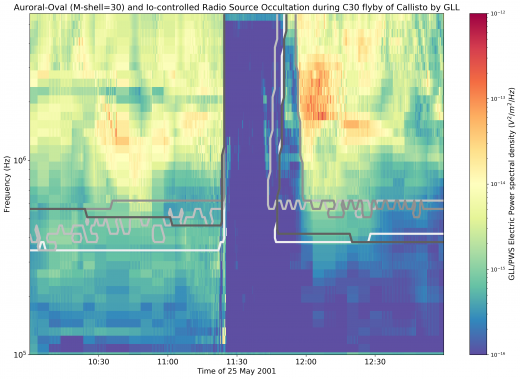

C30 ExPRES

Galileo I31 Flyby

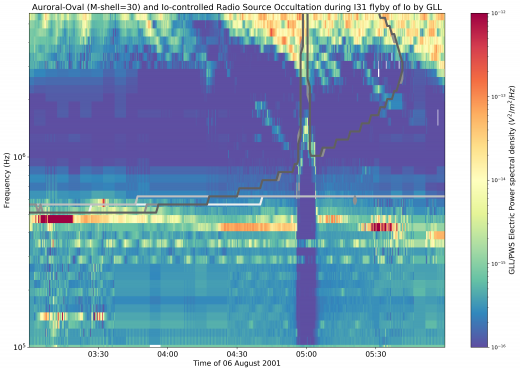

I31 ExPRES

Galileo I32 Flyby

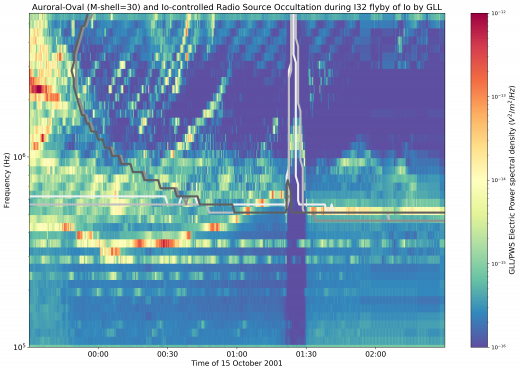

I32 ExPRES

Description

The repository contains a set of directories (one per studied Galileo flyby, with its name). For each flyby, a directory (named after the flyby name) contains 2 subdirectories:

  • cosmo/: the Cosmographia files.
  • expres/: ExPRES files.

The detailed files are:

  • cosmo/catalog/cosmo_expres_GLL_*.json: Cosmographia catalog file, containing visible radio sources location, as modelled by ExPRES;
  • cosmo/config/spacecraft_*.json: Cosmographia spacecraft configuration file
  • cosmo/config/spice_*.json: Cosmographia SPICE kernel data;
  • cosmo/expres/Full_*_expres_cosmo.json: ExPRES configuration file (with auroral and Io-controlled radio sources)
  • cosmo/expres/WGC_StateVector_*.csv: Ephemeris data file (extracted from WebGeoCalc);
  • cosmo/expres/expres_gll_*.cdf, and the resulting ExPRES simulation run result in CDF format;
  • cosmo/movies/cosmo_expres_GLL_*_pov.m4v: Video file showing the flyby, as seen from the spacecraft;
  • cosmo/movies/cosmo_expres_GLL_*_top.m4v: Video file showing the flyby, as seen from above the Jovian system;
  • cosmo/scenarios/load_GLL_*_001.json: Cosmographia scenario file;
  • cosmo/scripts/GLL_*_pov.py: Cosmographia script for preparing cosmo_expres_GLL_*_pov.m4v;
  • cosmo/scripts/GLL_*_top.py: Cosmographia script for preparing cosmo_expres_GLL_*_top.m4;
  • expres/Full_Galileo_*_expres.json: ExPRES simulation configuration file (Jupiter auroral and Io-controlled radio sources);
  • expres/WGC_StateVector_*.csv: Ephemeris data file (extracted from WebGeoCalc);
  • expres/expres_gll_jupiter_*.cdf: ExPRES simulation run file (Jupiter auroral and Io-controlled radio sources);
  • expres/Full_Galileo_*_expres.png: Galileo PWS data plot, with modelled ExPRES occultation.

Acknowledgements

This work has been supported by Observatoire de Paris-PSL, CNRS, CNES and ESA. The authors also acknowledge support from the Europlanet-2024 Research Infrastructure (EPN2024RI) project, which has received funding from the European Union’s Horizon 2020 research and innovation programme under grant agreement No 871149).

Contact

Any question or request should be addressed to contact.maser@obspm.fr

References

  • Cecconi, B, CK Louis, C Muñoz & C Vallat. 2021. "Jovian Auroral Radio Source Occultation Modeling and Application to the JUICE Science Mission Planning". Planet. Space Sci., 209, 105344. arXiv:2102.07588. doi:10.1016/j.pss.2021.105344
  • Louis, CK, SLG Hess, B Cecconi, P Zarka, L Lamy, S Aicardi and A Loh. 2019. "ExPRES: an Exoplanetary and Planetary Radio Emissions Simulator". Astron. Astrophys. 627(A30). doi:10.1051/0004-6361/201935161
